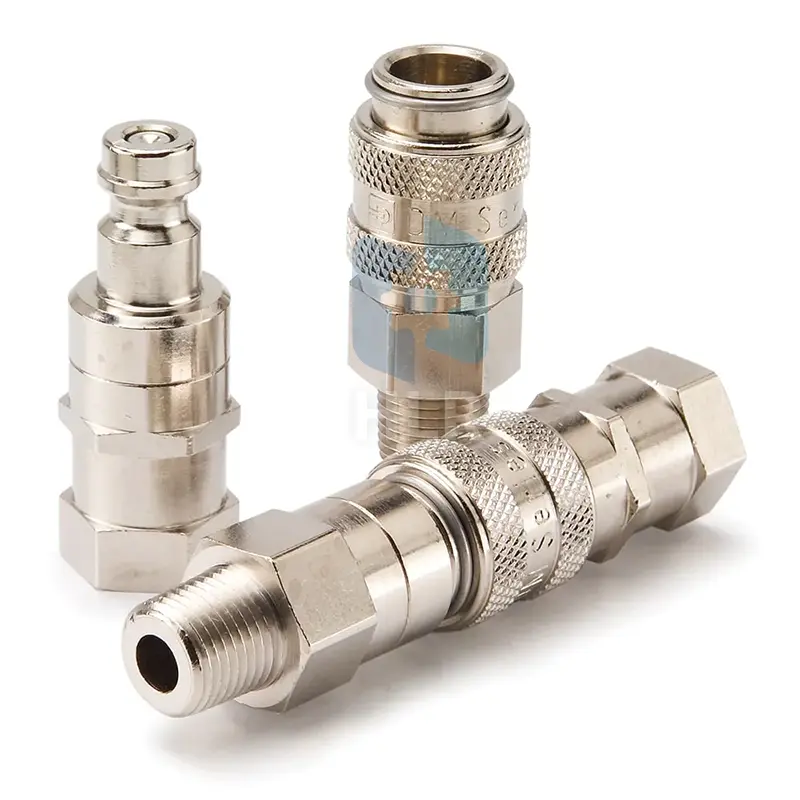

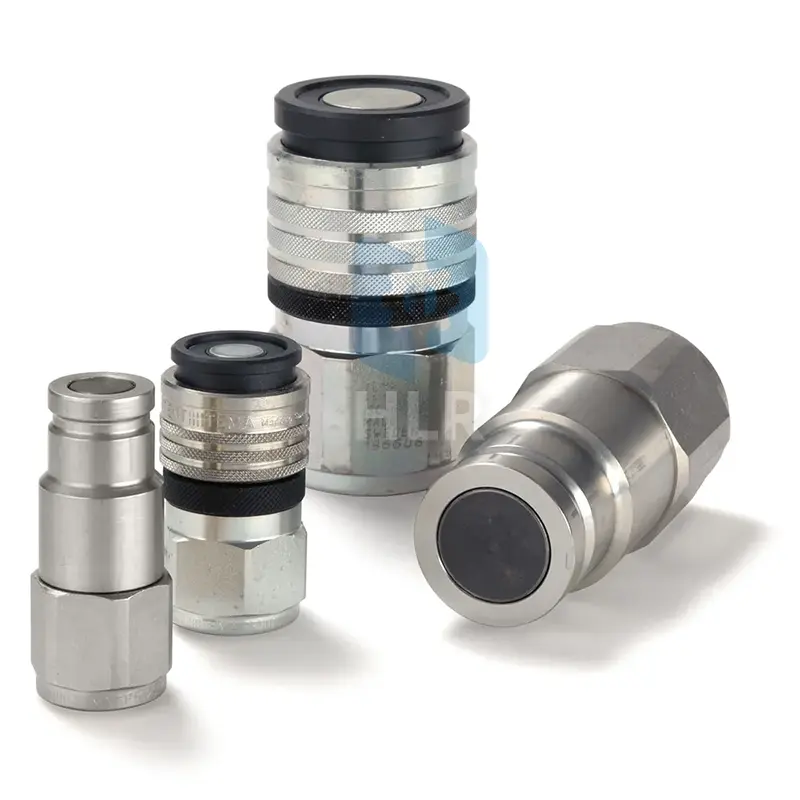

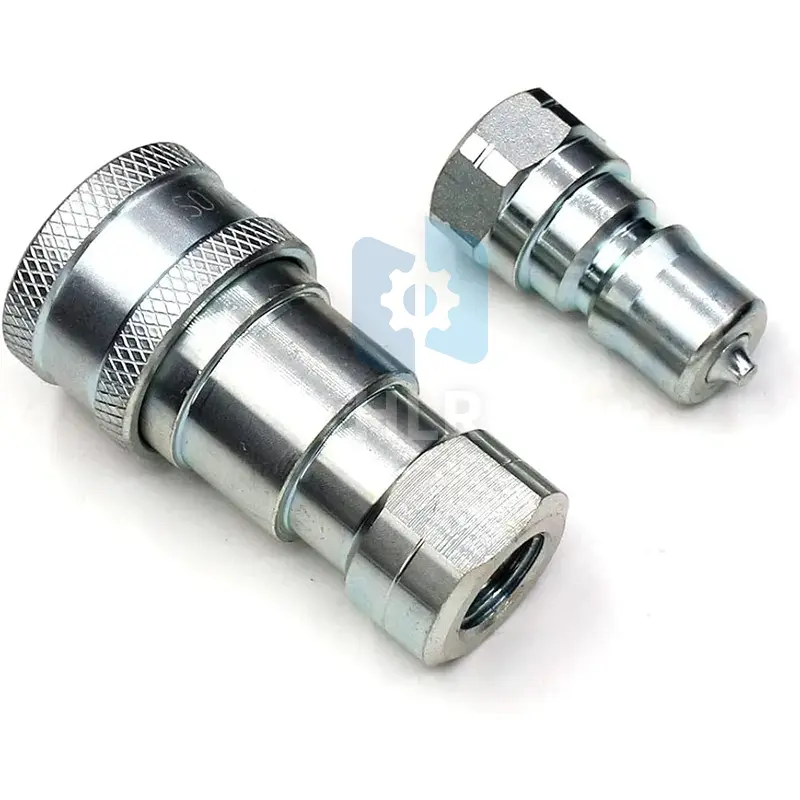

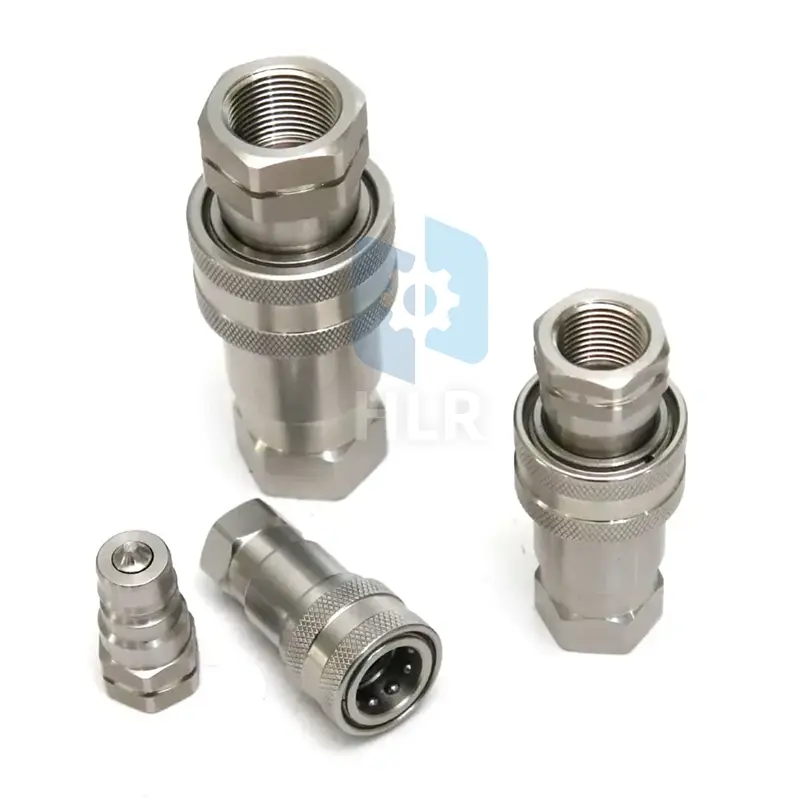

Qingdao Hanlinrui Machinery Co., Ltd's double shut off quick connectors are widely used in hydraulic, pneumatic and industrial piping systems. They have an automatic shut-off function to ensure no leakage risk during connection and disconnection.
Double shut off quick connectors are an efficient and safe fluid connection device. Double shut off quick connectors are designed with a double closing mechanism that enables quick connection and disconnection without leaking fluid, and are suitable for pneumatic and hydraulic systems.
|
Specification |
Details |
|
Thread Type |
NPT, BSPT, SAE, Metric, G (BSP) |
|
Material |
Stainless Steel, Carbon Steel, Brass, Aluminum |
|
Seal Type |
O-ring, PTFE, Nitrile, FKM (Viton) |
|
Size Range |
1/8" to 2" (varies by application) |
|
Pressure Rating |
Up to 350 bar (depends on size and material) |
|
Flow Rate |
10-1000 L/min (depends on size and design) |
|
Temperature Range |
-20°C to 100°C (standard), up to 150°C (high-temperature models) |
|
Connection Mechanism |
Push-to-connect, Twist-lock, Single-action, Automatic shut-off |
|
Leakproof Design |
Yes, with double shut-off valves to prevent leakage during disconnection |
● High-strength metal: Stainless steel, brass, steel and other high-strength metals are usually used as the main materials. These metals have excellent mechanical properties and fatigue resistance, ensuring the stability and safety of the joint.
● Corrosion resistance: Some double-enclosed quick connectors use special plastics or specially treated metal materials to improve their corrosion resistance, so that they can be used for a long time in corrosive fluids without being affected.
● Sealing materials: The seals inside the joints are usually made of oil-resistant and wear-resistant synthetic rubber or polytetrafluoroethylene and other materials, which have excellent sealing properties and chemical corrosion resistance.
● Lightweight design: On the premise of meeting the strength and sealing performance, some double-enclosed quick connectors use lightweight materials such as aluminum alloy to reduce the overall weight and facilitate carrying and installation.
● Surface treatment technology: In order to improve the durability and aesthetics of the joints, some joint surfaces will be treated with galvanizing, chrome plating, plastic spraying, etc. to enhance their corrosion resistance and visual effects.
|
Prevent leakage |
When connecting and disconnecting, the double stop valve design ensures that the flow path of liquid or gas at both ends is automatically closed to prevent leakage. |
|
Easy and fast connection and disconnection |
The quick connection and disconnection function does not require tools to operate, improves work efficiency, and is suitable for application scenarios where connections are frequently changed. |
|
Improve safety |
The double stop design can prevent operators from being exposed to dangerous fluids or gases, ensuring the safety of operation. |
|
Prevent cross contamination |
When the connection is disconnected, the double valve design prevents the media in the fluid system from mixing with each other to avoid cross contamination. |
|
Adapt to a variety of applications |
It is widely used in hydraulics, pneumatics, automobiles, agricultural machinery and other fields, and is suitable for the connection needs of different media and working environments. |
● Customized size and specifications: According to customer needs, we provide connectors of different sizes and specifications to suit various pipes and equipment. You can choose the appropriate flow, pressure level and temperature range according to the working environment.
● Customized materials: We provide a variety of material options, such as stainless steel, carbon steel, brass, aluminum alloy, etc., to meet the needs of corrosion resistance, high temperature resistance or wear resistance in different application scenarios.
● Customized sealing scheme: According to the medium and working conditions, we provide different sealing materials to ensure the sealing and durability of the connection.
● Customized connection method: According to customer needs, we can provide different connection methods, such as push-in type, rotary lock type, etc., to adapt to different operating environments and usage habits.
● Customized surface treatment: We provide surface treatment services, such as electroplating, galvanizing, spraying or anodizing, to enhance the corrosion resistance and appearance of the connector.
● Customized special functions: We provide customized services with special functions, such as explosion-proof, impact-resistant, UV-resistant, etc., to adapt to extreme working environments and specific industry needs.
● Are double shut off quick connectors suitable for my fluid type?
Please provide your fluid type and we can confirm the compatibility of the connector for you.
● What are the connection methods of double shut off quick connectors?
Double shut off quick connectors are convenient and quick with push-pull or threaded connections.
● Are double shut off quick connectors corrosion-resistant?
Yes, our double shut off quick connectors are made of corrosion-resistant materials and are suitable for a variety of fluid environments.
● Are double shut off quick connectors available with matching seals?
Yes, a seal will be included with the purchase to ensure sealing performance.
● What are the dimensions of double shut off quick connectors?
Please provide your pipe size and we can recommend the appropriate connector model for you.
