Hanlinrui is a professional China set screw piston pin manufacturer and supplier. Hanlinrui boasts a professional market research team that continuously tracks industry trends and competitor dynamics through data analysis, market research, and industry reports. By gaining deep insights into market trends and consumer needs, Hanlinrui provides clients with forward-looking product recommendations and marketing strategies.

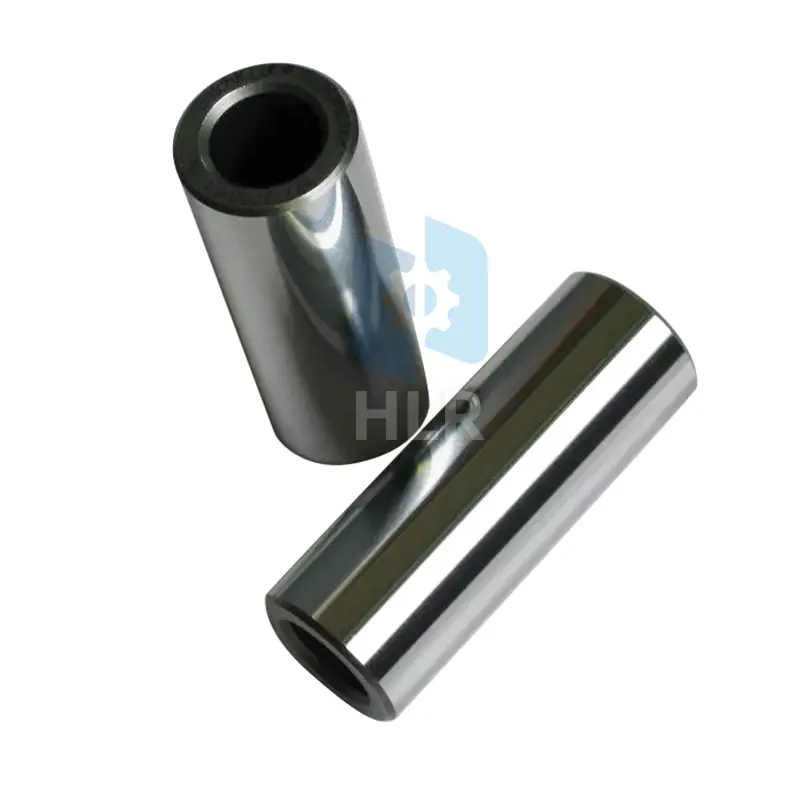

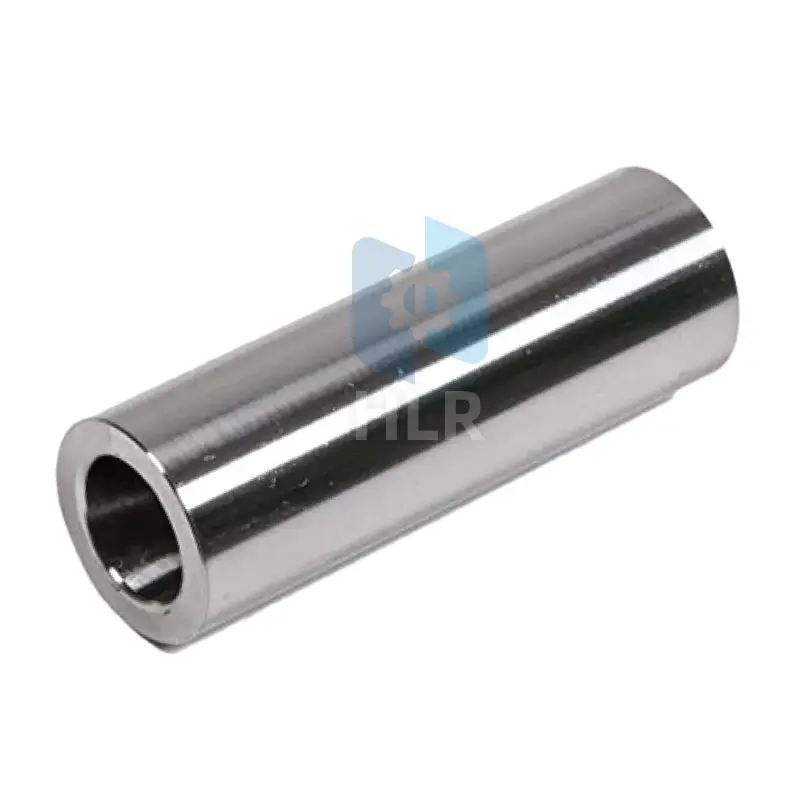

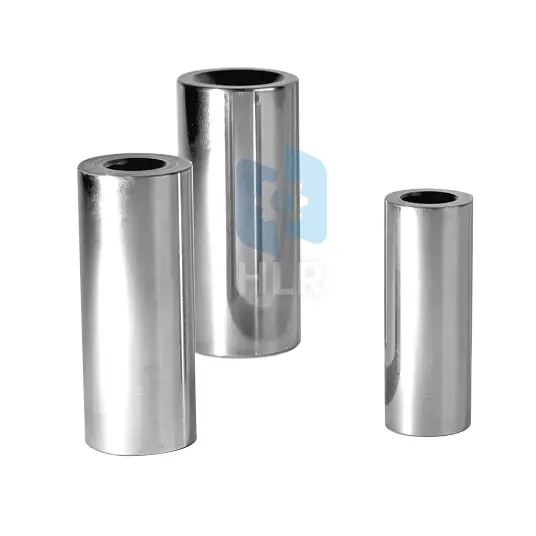

Set screw piston pin is a type of piston pin that securely attaches to the piston through the locking action of the screw, ensuring stable movement of the piston within the cylinder. Set screw piston pin features a simple structure and easy installation, making it widely used in engines and other mechanical equipment.
|
Specification |
Details |
|
Material |
Typically made from high-strength alloy steel, such as 4130 or 4340, to provide sufficient strength and wear resistance. |
|
Surface Treatment |
Usually undergo carburizing treatment to increase surface hardness and wear resistance. |
|
Size Range |
Available in a wide range of sizes, from small motorcycle engines to large commercial vehicle engines. |
|
Tolerances |
Strict dimensional tolerances to ensure precise fit with pistons and connecting rods. |
|
Hardness |
Core hardness HV 30, surface hardness HRC 58-62, ensuring durability under high loads. |
|
Installation Method |
Secured with a screw to ensure stability under high RPM and high load conditions. |
● High Strength and Durability: Made from high-strength alloy steel, they provide excellent strength and wear resistance, suitable for high-performance engines.
● Precise Fit: Designed with strict tolerances to ensure a precise fit with the piston and connecting rod, reducing play and increasing reliability.
● Secure Installation: The set screw mechanism provides a secure and stable connection, preventing the pin from rotating or moving during operation.
● Reduced Maintenance: Due to their durability and secure fit, they require less maintenance compared to other types of piston pins.
● Versatility: Available in a wide range of sizes and configurations, making them suitable for various engine applications, from small motorcycles to large commercial vehicles.
● Cost-Effective: While offering high performance and reliability, they are often more cost-effective than some other high-end piston pin solutions.
|
Design Feature |
Description |
|
Fixing Method |
Utilizes a set screw for fixation, ensuring a secure connection between the piston pin and the piston |
|
Screw Material |
The set screw is typically made of high-strength, corrosion-resistant alloy material to enhance durability and reliability |
|
Piston Pin Material |
The main body of the piston pin is crafted from high-quality alloy steel or stainless steel, offering high strength and excellent wear resistance |
|
Locking Effectiveness |
The locking design of the set screw effectively prevents loosening or detachment of the piston pin during operation |
|
Ease of Installation |
Features standardized installation interfaces and dimensions for quick and accurate assembly onto the piston |
|
Applicability |
Suitable for various types of engines and mechanical equipment, meeting usage demands across diverse operating conditions |
|
Durability |
Undergoes rigorous processing and quality control to ensure sustained performance and stability over extended use |
|
Precision Control |
Manufactured using high-precision machining techniques to guarantee compliance with standards for dimensional and shape accuracy |
● Product Specification Customization: Tailoring the product specifications to meet specific customer requirements, such as size, weight, or composition.
● Packaging Customization: Offering various packaging options, including different materials, sizes, and designs, as well as personalized branding and logo incorporation.
● Batch Sizes: Offering flexibility in order quantities, from small batch production for niche markets to large scale for mass distribution.
● Additional Services: Offering additional services such as assembly, kitting, or value-added processing that can save customers time and resources.
● Delivery Scheduling: Customizing delivery schedules to align with customer needs, including just-in-time delivery or scheduled drop-offs.
Q: What engines is this piston pin compatible with?
A: It's compatible with various internal combustion engines. Please confirm your model and specifications.
Q: Is installation difficult? Do I need special tools?
A: Installation is straightforward and usually doesn't require special tools.
Q: What's the material like? Is it durable?
A: It's made of high-strength alloy steel, which is wear-resistant and corrosion-resistant, ensuring high durability.
Q: What should I do if the piston pin becomes loose?
A: Check the set screw and tighten it if necessary, or consider replacing it.
Q: Does it come with a warranty?
A: Yes, please refer to the instruction manual or contact customer service for specific warranty terms.
